COTTESMORE, St. Nicholas (SK 902 137) (November 2008)
(Bedrock: Middle Jurassic, Northampton Sand Formation)

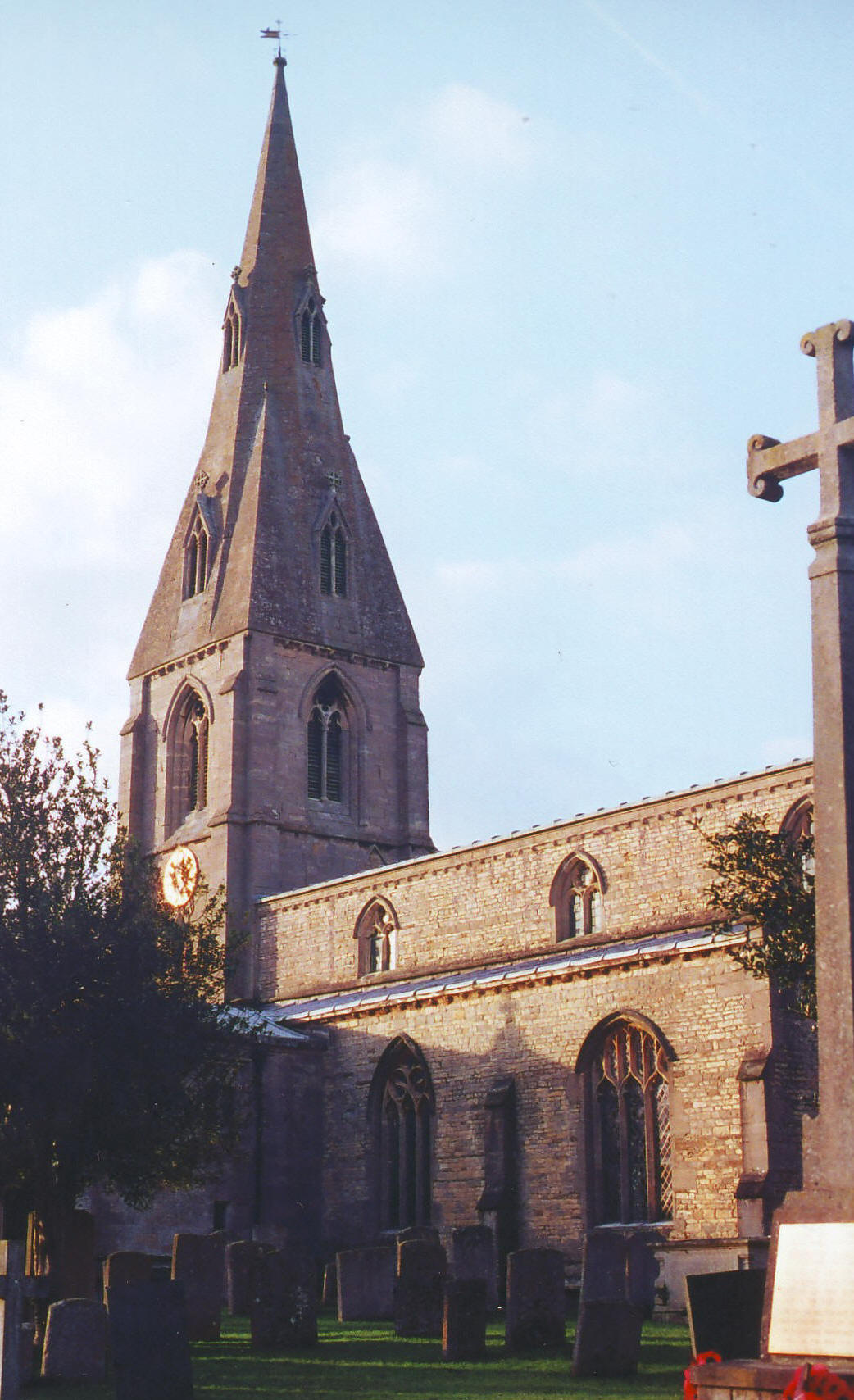

This church (shown left, from the southeast), constructed of Clipsham stone from the Middle Jurassic Upper Lincolnshire Limestone, consists of a W. tower with a broach spire, an aisled nave with a two-storeyed S. porch, and a chancel with a lean-to N. vestry, and so both in plan and general appearance, it resembles its neighbour, St. Mary’s, Greetham. More curiously, however, it is also similarly reluctant - by its confusing juxtaposition of elements in only slightly differing building styles - to make clear its history of construction, and so the best way to examine it, is probably to consider the various parts of the church in turn, in at least approximate age order, and then to attempt to put the pieces together afterwards, to form as coherent a narrative as possible, and it is at least plain that the earliest work at Cottesmore is the re-set Norman doorwat to the nave (right), inside the S. porch, formed of three orders bearing two-dimensional chevron on the innermost, both above and below the abaci, and three-dimensional chevron on the second, above octagonal shafts with scalloped capitals.

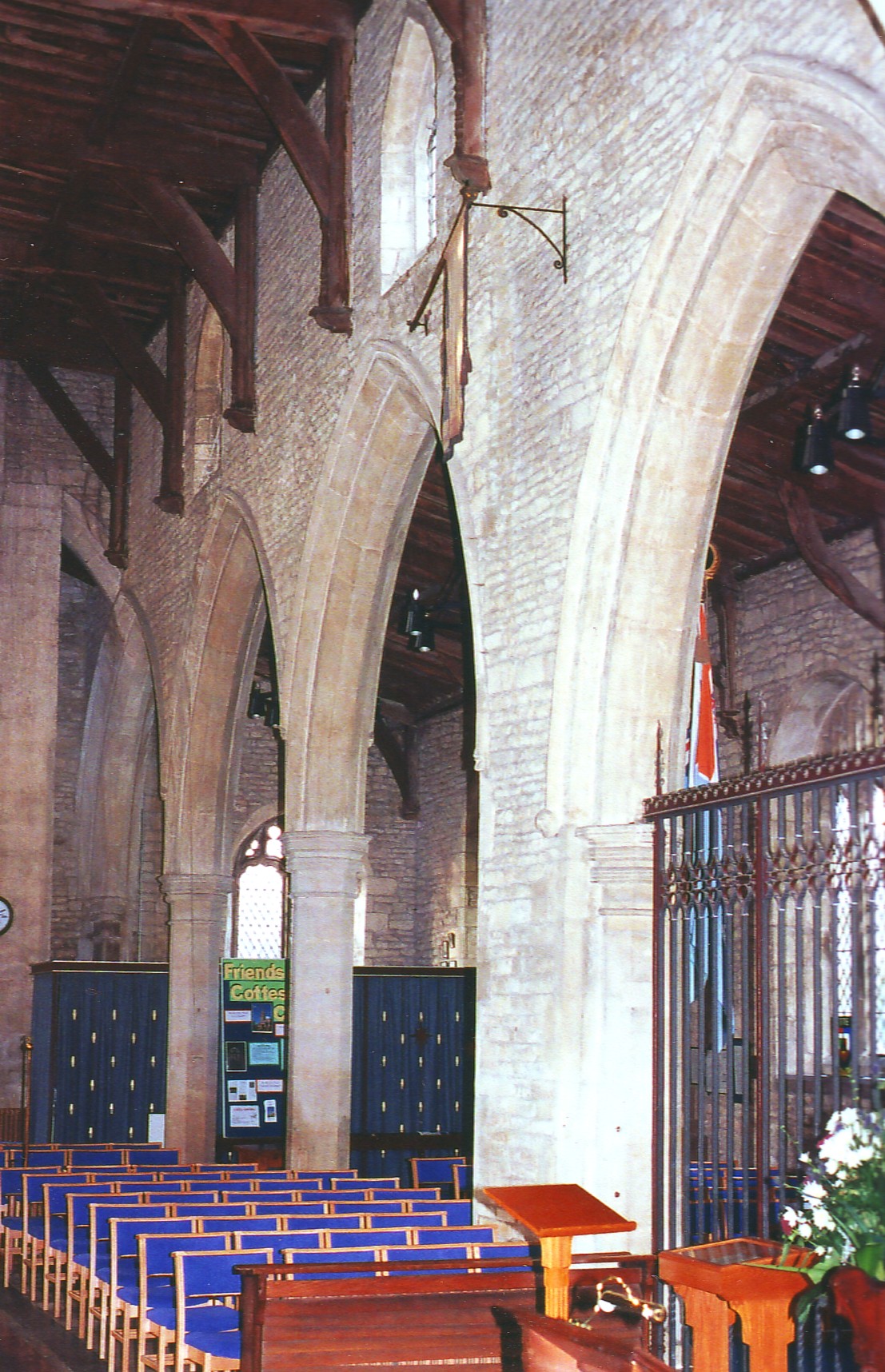

After examining at this, however, it is probably best to enter the church to look at the aisle arcades. These are four bays long - or, to be precise, the S. arcade is four bays long while the N. arcade (seen left, from the east) is formed of three bays plus one, for while all the arches are double-flat-chamfered and supported on slender octagonal piers with rather narrow capitals, the three western bays of the N. arcade are separated from the easternmost by a short wall piece and the final bay rises from a lower springing level than the others, which it nevertheless shares with a chancel arch that is identical to it, save only for its greater width and wider chamfers. Moreover, these are not the only minor stylistic complications, for there is a hood-mould with head label stops above the easternmost N. arch and the whole of the S. arcade, but not above the three western arches to the north. Moreover, although the clerestory throws light on these arcades in the literal sense, it casts none on their interpretation, for this consists simply of three pairs of two-light windows with identical reticulated tracery except in the easternmost window to the south, which is a manifestly Perpendicular replacement, while the early fourteenth century date of the others is confirmed externally by a frieze beneath the nave parapet, composed partly of ball flower. The aisle windows are even less helpful as an aid for dating the building for they are now almost entirely Perpendicular, except for a row of ball flower ornament around the square-headed S. window in the S. aisle, to the west of the porch (shown right), and the S. window immediately east of the porch, with tracery formed of a quatrefoil and two circles of mouchettes. Yet the N. doorway to the nave looks older again, for it consists of a single flat-chamfered order with nailhead on the abaci, suggesting a date no later than c. 1300. Of course, this may or may not still be in situ.
The W. tower is late thirteenth/ early fourteenth century in appearance and rises in three stages supported by angle buttresses, to a broach spire lit by two tiers of two-light gabled lucarnes in the cardinal sides. The bell-openings have quatrefoils in circles in the heads, above trefoil-cusped lights separated by circular shafts, and the restored W. window is formed of another encircled quatrefoil above two uncusped lancet lights, beneath an original hood-mould with head label stops. However, once again it is inside the building that difficulties arise. The tower arch to the nave (illustrated left) is narrow and steeply-pointed, and formed of three flat-chamfered orders, only the innermost of which has capitals, but what is hard to understand is why it should be positioned off-centre to the south, leaving room between it and the N. arcade for an internal E. buttress and a flying buttress which crosses from the nave N. wall, above the westernmost bay of the N. arcade. Above the tower arch, the gable line of the pre-clerestory nave roof can also still be seen.
The Perpendicular windows in the building feature the frequent use of uncusped lights separated by strong mullions, and of quatrefoils in the oculi. The aisles windows are three-light except for the two-light W. window in the N. aisle (there is no equivalent window in the S. aisle), with supermullioned tracery to the north, and a quatrefoil in the oculus of the easternmost S. window and the E. window to both aisles. The Perpendicular S. porch has a carved basal frieze of encircled quatrefoils in squares, and an outer doorway formed of two orders bearing a series of mouldings, with a hood-mould that terminates in head label stops. The stair to the porch upper storey is contained within a rectangular projection inside the S. aisle, west of the inner doorway, which is entered from the north through a little four-centred doorway.

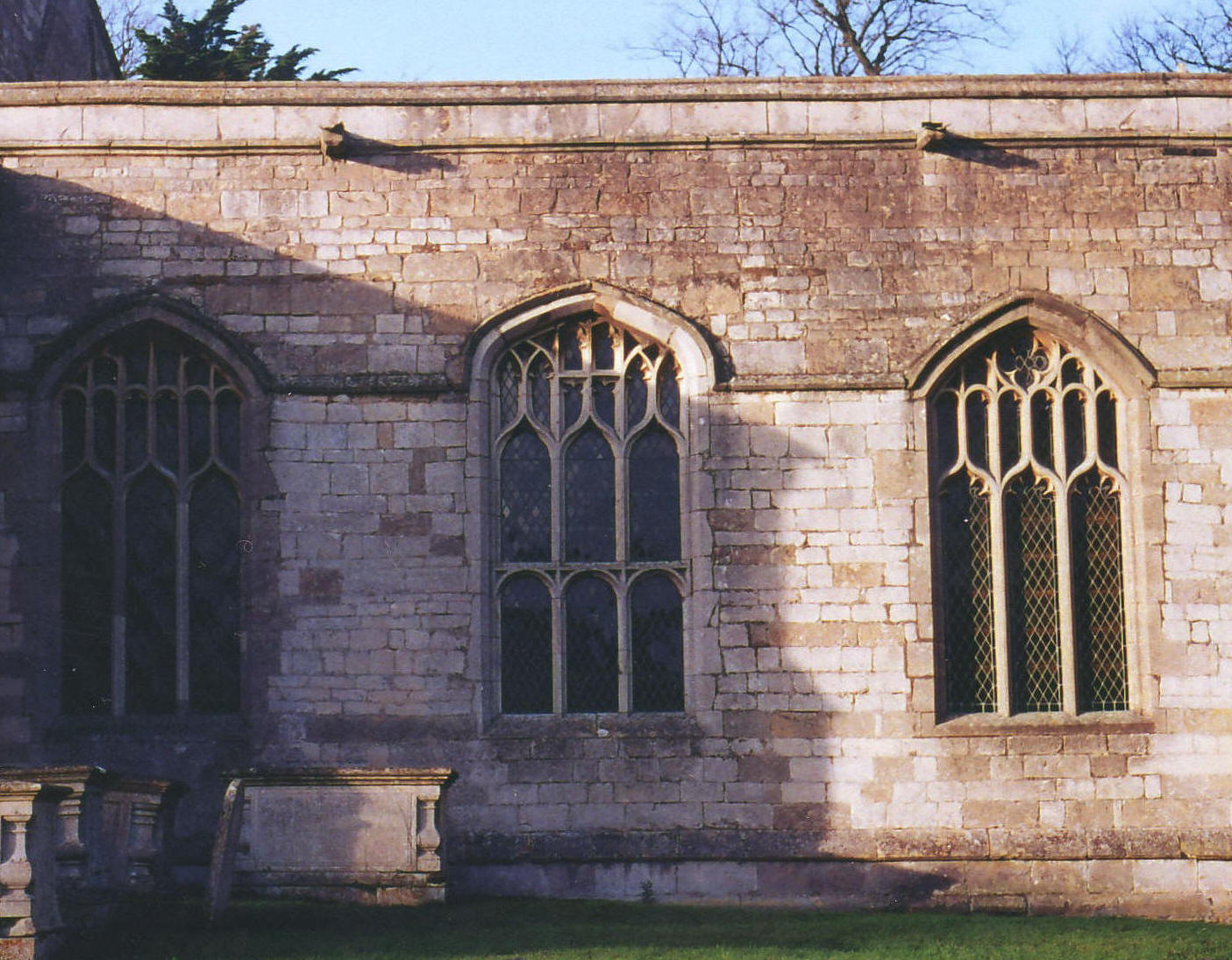

The chancel is lit from the south by three dissimilar windows (illustrated right), all with drop tracery, of which the westernmost is segmental-pointed and supermullioned, the central window is four-centred and transomed, with strong mullions, split Ys above the outer lights and a supertransom above the central light, and the easternmost is renewed and formed of lights separated by strong mullions, with a quatrefoil in the oculus. The transomed five-light E. window with strong mullions has been largely renewed but is notable for the head label stops to the hood-mould, which do appear to be original, and for the little carved figures at the springing level of the little roll moulding that runs around the entire window, just inside the external splay. There is one window with supermullioned tracery on the north side of the chancel, to the west of the nineteenth century vestry.
The church contains few furnishings that need mention but the font presents another puzzle for it rises from a square base that is clearly older (Norman-Transitional?) than the octagonal part above: the base has carved heads at the corners while the bowl is decorated by two trefoil-cusped lights on each face. The pulpit may be yet another hybrid piece for it appears to be seventeenth century work now standing on a renewed stem.
However, to return to the main body of the church in order to attempt the interpretation of some of the evidence presented there, the tower presumably predates the clerestory, to judge from the gable line above the tower arch, which suggests, if the clerestory is Decorated, that the tower dates from c. 1300 at the latest, at least in its original form. If it was aligned at that time with the chancel and (perhaps) an aisleless nave, it would then follow that these were rebuilt a little afterwards, when the aisles were added, and - if the flying buttress from the north is evidence that the tower was built into the nave at the outset, as Pevsner believed - the nave itself made narrower from the south by setting out the line of the S. arcade to the north of the earlier nave S. wall... However, this line of argument, highly speculative though it is, does nothing to explain the stylistic differences between the N. and S. arcades, or the fact that the N. arcade is formed of three bays plus one, and so one is led on to wonder whether these discrepancies could be due to other factors, such as the involvement of different masons in essentially the same phase of building work, or whether there was once a cross-gabled N. transept (subsequently truncated in line with the aisle) where the easternmost bay of the N. aisle is now, or if not, then at least an intention to build one. Of course, as so often in cases like this, it is possible to invent a number of scenarios that appear to give a tolerable fit to the architectural evidence, not one of which may be quite right.
